Photo of Centro C

Centro C

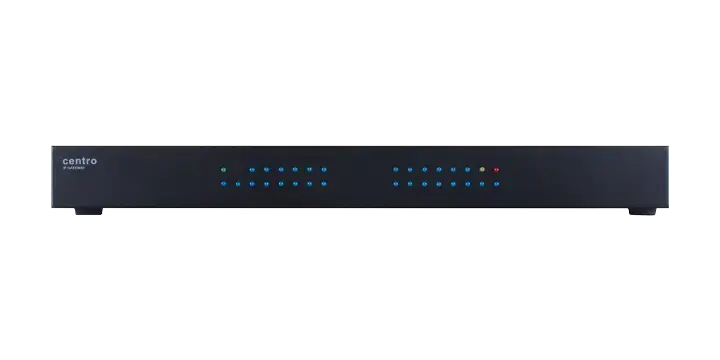

Photo of Centro C - Front
Centro C - Front I/O
Photo of Centro C - Rear
Centro C - Rear I/O

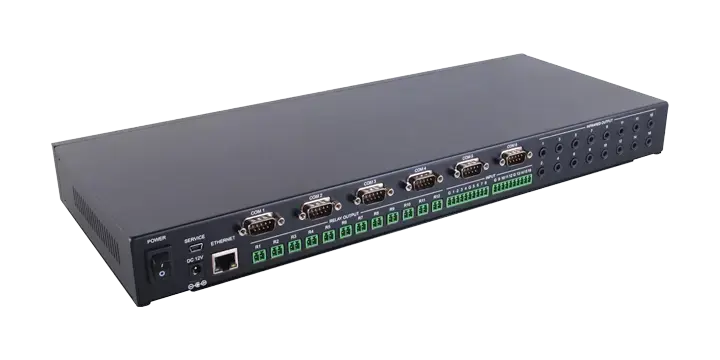

Photo of Centro C - Rear and Side
Centro C - Rear

Centro C

IP Control Gateway

InsideCI 5 Star Recommended Product

Have access to 50 IO ports from a single professional unit. The Centro-C is an affordable, rack-mountable, IP control gateway capable of controlling any system via Infra-Red, RS232 or Contact Closure.

Centro C Installation Diagram

3rd Party Support

The Centro-C supports any 3rd party control system or app to maximise its control capabilities

Multiple TCP Connectivity

Allowing more effective use of your networks bandwidth and improving performance

Extensive I/O

Each of the 50 I/O ports are individually addressable, providing specific control over your system

Free Control App

It can be controlled by our CentroControl app - an app you design to suit your needs

Free Pro Graphics

This product comes with a free Pro Graphics package for customising your user interface

Maximising Compatibility

The Centro-C offers seamless integration with existing DemoPad Software projects


  • 6 Individually addressable, bi-directional RS232 COM ports
  • 12 Low voltage contact closure relay outputs
  • 16 Volt-free digital inputs (for PIR sensors etc.)
  • 16 IR Outputs
  • 1 Ethernet LAN Port


  • Dimensions: 430mm x 180mm x 50mm (WxDxH)
  • Weight: 430mm x 180mm x 50mm (WxDxH)
  • Operating Temp: 0° - 30°
  • Storage Temp: -20° - 60°
  • Power Supply: 12V DC
  • Power Consuption: 1.5 W

In The Box

  • 1 Centro C
  • 8 IR Emitters
  • 8 3.5mm Jack - 3.5mmm Jack leads
  • 1 12V DC Power Supply
  • 2 19" Rack Mount Brackets
