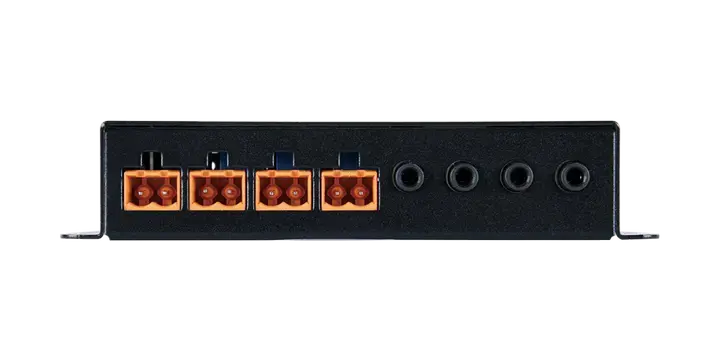

Photo of Centro CM - Front
Centro CM - Front I/O

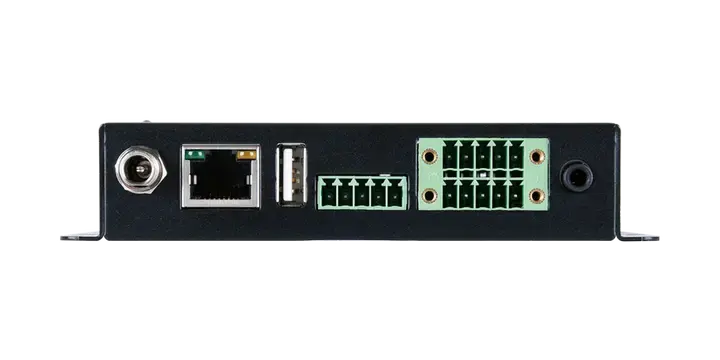

Photo of Centro CM - Rear
Centro CM - Rear I/O

Centro CM

IP Control Gateway

InsideCI 5 Star Recommended Product

The CENTRO-CM is an affordable, small form factor control gateway which provides a link from your network devices / control system to Infra-Red, RS232 & relay contact closure devices.

Centro CM Installation Diagram

Integrated IR Learner


Provides the interface for learning, testing and executing IR commands on controlled devices

Multiple TCP Connectivity


Allowing more effective use of your networks bandwidth and improving performance

Configurable I/O


Each I/O port is individually addressable, providing specific control over your system

Free Control App


It can be controlled by our CentroControl app - an app you design to suit your needs

Free PRO Graphics


This product comes with a free Pro Graphics package for customising your user interface

Maximising Compatibility


The Centro-CM offers seamless integration with existing DemoPad Designer projects

Connectivity

  • 4 Individually addressable IR output ports
  • 1 Bi-directional, configurable RS232/422/485 COM port
  • 4 High voltage contact closure relay outputs (240V AC, 10AMP)
  • 8 Volt-free digital inputs (for PIR sensors etc.)
  • 1 USB port for firmware updates
  • 1 POE Ethernet LAN Port

Specifications

  • Dimensions: 128mm x 25mm x 118mm (WxDxH)
  • Weight: 400g
  • Operating Temp: 0° - 40°
  • Storage Temp: -20° - 60°
  • Power Supply: 5V / 2.6A DC

In The Box

  • 1 Centro C
  • 4 IR Emitters
  • 1 IR Receiver for Learning Function
  • 1 5V DC Power Supply
